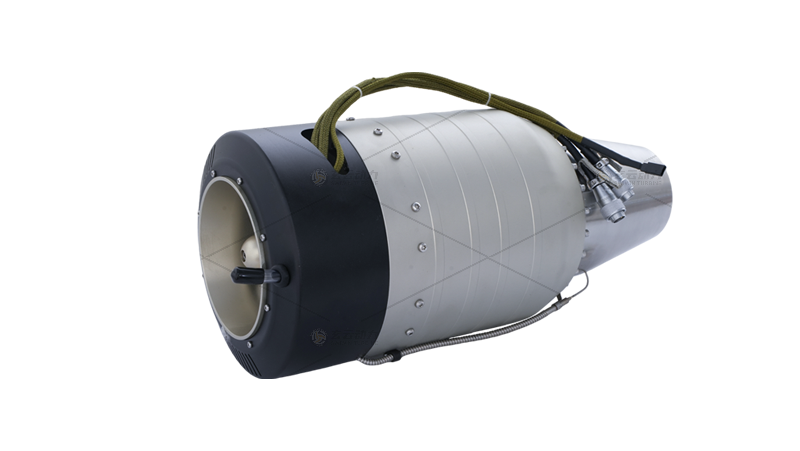

Turbojet engine

SW800Pro-Y

Product technical parameters

Thrust:80kg
Diameter:207mm
Length:455mm
Weight:9500g
Speed range:25000～65000
Idle RPM:25000
Rated exhaust Max Temp:750℃
Fuel consumption:≤1850g/min
Fuel used:Aviation kerosene
Lubricating oil: 3%～5%
Maintenance cycle: 25H

GSU
Two way joint
Signal Plug（K2）
Power Plug（K7）

Engine start		Engine operation		Starting motor
Pump Voltage	0.7-0.9V	RPM ACC	10	Eject time	0.8S
RPM Start Up Ramp	100	RPM DEC	10	Ejection Low Volt	5V
Pump Start Up Ramp	3	Idle RPM range	25000～65000	Run Voltage	2.5V
Glow Plug	6.6V	Idle RPM	25000	Cooling	2000
Valve	40	Max Temp	≤1000
Ignition RPM	1300	Low Volt	≥10V
Preheat RPM	3000	Restart	Off
RPM Off Starter	13000	Restart Glow Plug	Consistent with the fire head Low Volt
		Pump Limit	28V

File download

SW800Pro-Y Technical specifications.pdf SW800Pro-Y Size.pdf

High power brushless starting motor

The brushless starting motor developed by ourselves has stable output, reliable operation and long service life

Brushless, low interference:The brushless motor removes the brush, thereby avoiding the electrical spark generated by the operation of the brushed motor. This not only greatly reduces the interference of electric sparks to remote control wireless equipment, but also provides a more stable working environment for the equipment.

Good Speed range control performance:The brushless motor has the characteristics of wide Speed range regulation range and low error of high steady Speed range, which makes it have significant advantages in the field of Speed range regulation. The controller of the brushless motor can adjust the Speed range of the motor according to the need to achieve good working condition.

Small size, light weight:The small size and light weight of the brushless motor make it more flexible and convenient in design and installation.

Low power consumption, high efficiency:The power consumption of brushless motors is usually only one-third of that of brushed motors, while their efficiency is also relatively high. This means that at the same power, brushless motors are able to provide greater torque and higher Speed range, while reducing energy consumption.

Low noise, smooth operation:Because there is no brush, the friction of the brushless motor is greatly reduced during operation, making it run more smoothly and the noise is relatively low.

High reliability:Brushless motors have no wearing parts such as brushes, so their reliability is higher.

Oil system connection

Compatible with various types of engines, such as SW190B, SW220B, SW300B, SW400Pro, with ECU can accurately control the amount of fuel, ignition timing, etc., in order to achieve stable engine operation.

Compact structure and small size
Compact structure, small size, precise design and small space, suitable for installation in a limited space.
Strong self-priming ability
Strong self-priming ability, regardless of high, low Speed range and even manual conditions can be reliably self-priming.
Strong applicability
Strong applicability, can be pumped into high viscosity oil night, suitable for all kinds of oil, lubricating oil and so on.
Reliable operation and stable operation
It has the advantages of long life and low failure rate. Later maintenance is convenient, and maintenance and repair costs are low.
Convenient post-maintenance
Later maintenance is convenient, and maintenance and repair costs are low.
Suitable for a variety of Max Temps
It can work stably in the environment of -40℃ to +50℃, and the flow rate is uniform and the oil pressure is stable.

Highly intelligent, convenient and reliable

With the characteristics of high intelligence, it can automatically identify user needs and provide personalized services

Light weight

Small size

Low fuel consumption

Low noise
